BUCHER

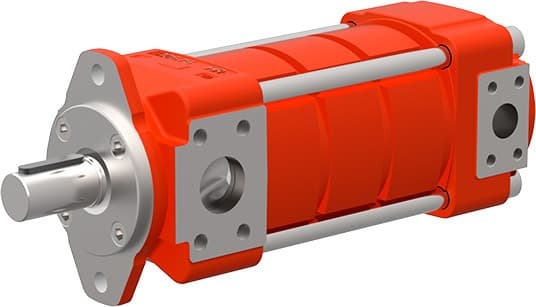

QXV31-020R Single Internal Gear Pump 20.0 cm³/rev 25 bar
The QXV31-020R is a single internal gear pump from the Bucher Hydraulics QXV series, specifically engineered for pumping low-viscosity fluids. Featuring a nominal displacement of 20.0 cm³/rev and a maximum operating pressure of 25 bar, this single-stage pump (pressure range 1) delivers volumetric efficiency up to 98% even at viscosities around 0.8 mm²/s.
Technical features and advantages:
- QXV series, internal gear pump for low-viscosity fluids
- Nominal displacement: 20.0 cm³/rev
- Maximum flow rate: 60.0 l/min at 3000 rpm
- Maximum operating pressure: 25 bar (pressure range 1, single stage)
- Maximum speed: 3000 rpm
- Oval 2-hole flange to ISO 3019/1 (SAE), size SAE A ø 82.55 mm 2B
- Cylindrical shaft ø 25 mm to ISO/R775
- Seals: VITON (FPM), right-hand rotation
- Volumetric efficiency up to 98%, extremely low noise levels
- Suitable for ATEX-compliant explosion protection (Ex II 3G T3/T4)
Typical applications:
- Test rigs for diesel injection nozzles
- Fuel pumps for gas turbines
- Lubrication systems for spindle bearings
- Processing systems with HFA fluids and kerosene
TECHNICAL DETAILS
Features and data sheet
| Manufacturer | BUCHER |
| Series | QXV |
| Type | SINGLE INTERNAL GEAR PUMP |
| Nominal pressure (bar) | 25 |
| Displacement (cm³/rev) | 20 |
| Maximum speed (rpm) | 3000 |
| Seal materials | FKM |
| Mounting flange | SAE A Ø 82.55 mm 2B |
| Mounting hole thread (in/out ports) | BSP |
| Shaft type | CYLINDRICAL Ø 25 mm |
| Technical notes | PER FLUIDI A BASSA VISCOSITÀ |
